7" Reel

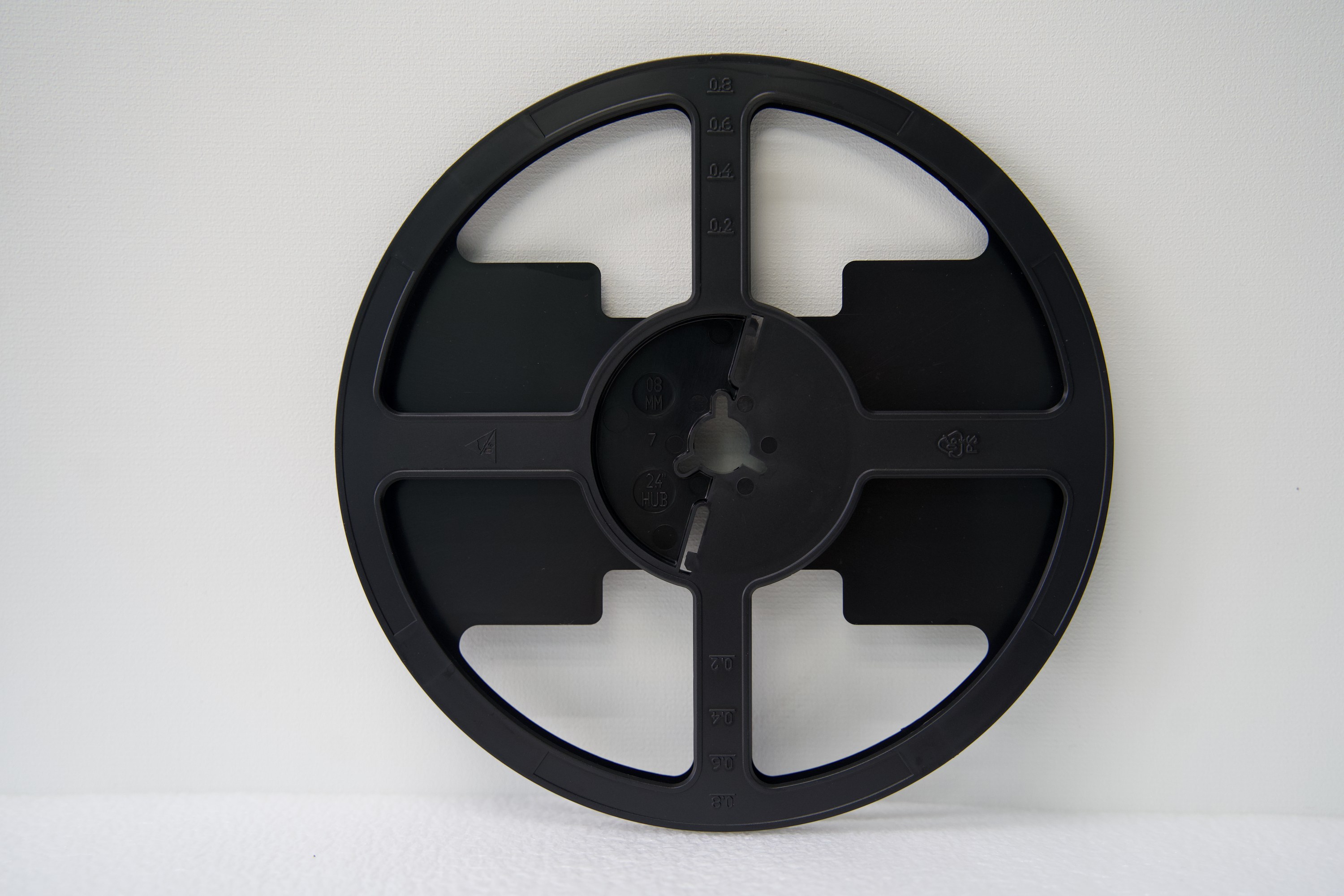

7" Reel 4.4A Series
This reel series is super light weight with average flange thickness of 1mm.
Recommended For
It is recommended for light weight components like discrete packages like diodes, miniature capacitors, LED etc.
Specification Matrix
- Series
- 4.4A
- P/N
- 4.4AWW0702(CCC)
- Material
- HIPS
- Compliance
- EIA 481 packing guidelines
- Flange Thickness
- 1mm
- Flange Dia
- 178.0 mm
- Hub Dia
- 62 mm
- Arbour Hole
- 13.0 mm
- Capacity
- It can normally pack up to 3,000 components per reel as per EIA 481 packing guidelines depending on package Ao, Bo and Ko.
Baking Capability
The products were tested good (no deformation or distortion of any kind) in industrial oven by aging for 30 days at 60 Deg C (RH 50%).
Storage Condition
The shelf life of our product is up to 5 years from manufacturing date with the following storage condition:
- i)Product remain kept in its original packing.
- ii)Product must not be exposed to any UV source or direct sunlight.
- iii)Product kept in storage area with temperature not exceeding 60 deg C.
ESD Properties
- Treatment
- Antistatic Coated (Topically)
- Surface
- 10E9 - 10E11 Ohms/Sq
- Decay
- Spec limits : below 1 second @ 1% cutoff
- Point-Point
- Spec limit : 1.0 x 10E4 to 1.0 x 10E11 Ohm
- Point-Gnd
- Spec limit : 1.0 x 10E4 to 1.0 x 10E11 Ohm
Caution: It is advisable to re-check the ESD for products kept more than 2 years from manufacturing date.
